Say hi to BeamLab 1.2 — our biggest release yet! Read on to learn more about the most exciting new features and performance improvements (jump to release notes).

Enhanced waveguide design flexibility

In BeamLab 1.2, we’ve added a new class of functions called path functions. These functions allow the definition of complex 3D trajectories with just a few lines of MATLAB^® code, making the definition of complex waveguide structures both easy and flexible. Instead of having to split up a complex waveguide structure into many different simpler waveguide sections, the entire structure can now be directly defined in a single section with a much shorter and simpler code as exemplified below for the case of our directional coupler demo:

options.ShiftType = 'custom';

points = [20 0 0;
    20 0 100;
    -2 0 1600;
    -2 0 5600;
    20 0 7100];
options.ShiftFunction{1} = @(z) linsinpath(z,points);

points = [-20 0 0];
options.ShiftFunction{2} = @(z) linsinpath(z,points);

Here, the function

linsinpath is one of our new path functions which creates a 3D trajectory consisting of sinusoidal transitions, linear transitions, or combinations thereof, connecting an arbitrary number of points defined as a N x 3 matrix with each row corresponding to the x-, y-, and z-coordinates of a transition point in space.

One of our new demos showcasing this new feature is an integrated RGB beam combiner [1] where all three waveguide arms are defined by these path functions:

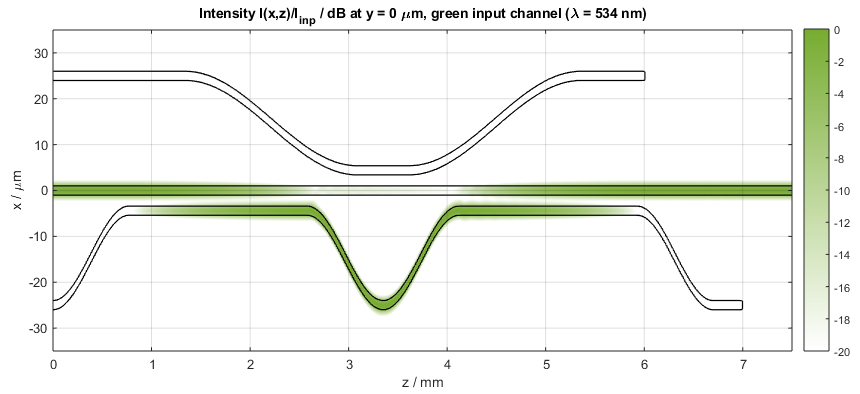

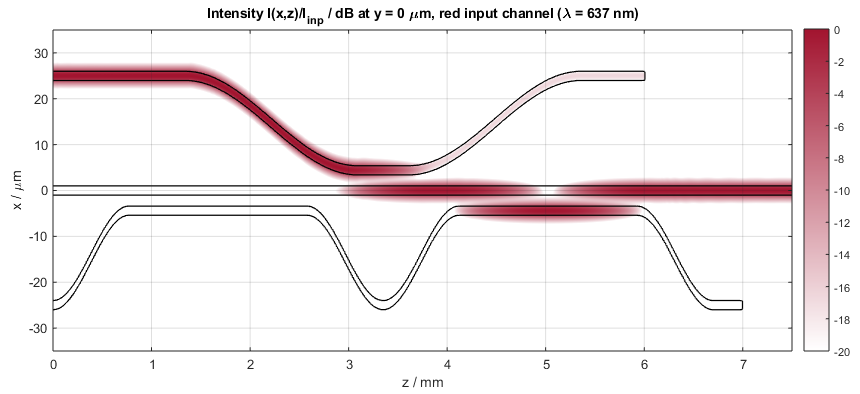

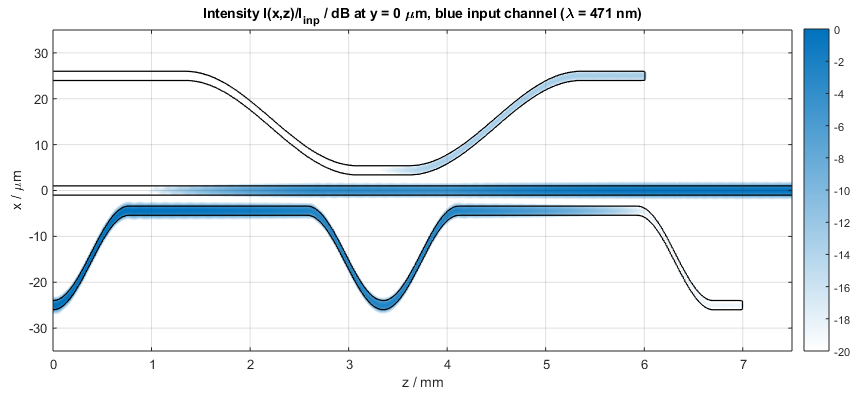

Intensity profiles in the RGB beam combiner (left: red input channel; center: green input channel; right: blue input channel)

The following video shows the beam propagation through the RGB beam combiner for each of the three color channels:

Video of red, green, and blue beams propagating in the RGB beam combiner

Simplified coding

Applications that make use of new BeamLab 1.2 functions such as path functions and the input field function

modeinput can reduce the code length by more than 70%. For example, the waveguide definition of our directional coupler demo required 105 lines of code in BeamLab 1.1, but can be reduced to less than 30 lines of code in BeamLab 1.2, as exemplified in the code snippet shown above.

Exciting new demos

We’ve added a new Mach-Zehnder interferometer (MZI) demo with two input and two output arms showcasing x–z slice plots of the real part of the propagating complex electric field (in contrast to the absolute value that is typically shown in BPM based plots). This is just one example of the many new plotting possibilities enabled by the newly added parameter

SlicesXZGraphType in BeamLab 1.2:

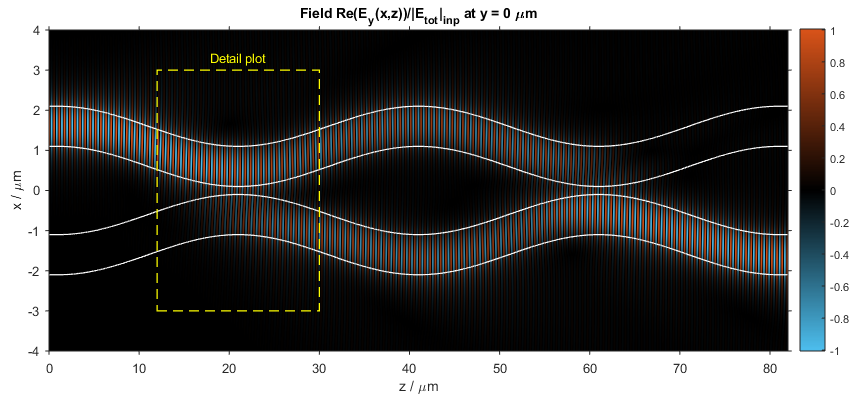

Field profiles in the MZI (left: complete propagation structure; right: detail plot)

We also added a new demo that demonstrates deflection of a Gaussian beam in free space by a series of ideal prisms using the new waveguide function

thinprism:

Video of beam deflection via multiple prisms

Interested in more examples? Please also check out our examples page.

Improved parameter orders

In BeamLab 1.2, we’ve also changed the parameter order of the waveguide functions

multicore, plc, and rib to improve consistency throughout all waveguide functions. Along with this change, we’ve also replaced the required parameter shift by an optional parameter Shift in the plc waveguide function. The new parameter order allows you now to change your propagation structure more easily from one type of waveguide to another, e.g., from plc to rib.

BeamLab 1.1 and earlier:

multicore(beamProblem,len,coreWidth,coreNumber,ringRadius,coreIndex,claddingIndex);
plc(beamProblem,len,coreWidth,coreNumber,shift,coreIndex,claddingIndex);
rib(beamProblem,len,coreWidth,substrateWidth,substrateCenter,coreIndex,substrateIndex,claddingIndex);

Starting in BeamLab 1.2:

multicore(beamProblem,len,coreNumber,coreWidth,coreIndex,claddingIndex,ringRadius);
plc(beamProblem,len,coreNumber,coreWidth,coreIndex,claddingIndex);
rib(beamProblem,len,coreNumber,coreWidth,coreIndex,claddingIndex,substrateWidth,substrateCenter,substrateIndex);

References

[1] A. Nakao et al., “Integrated waveguide-type red-green-blue beam combiners for compact projection-type displays,” Optics Communications, vol. 330, pp. 45-48, 2014.

Release Notes

New features:

• Add new class of path functions. These functions allow the definition of complex 3D trajectories with just a few lines of MATLAB^® code, making the definition of complex waveguide structures both easy and flexible. They can be used anywhere in BeamLab, where custom functions define a lateral offset in x- and y-direction as a function of the longitudinal z-value. For example, path functions can be used as
  ShiftFunction
  ShiftFunction in the waveguide functions
  singlecore
  singlecore,
  multicore
  multicore,
  plc
  plc, and
  rib
  rib to define complex trajectories along which waveguide cores are shifted. Path functions can also be used as custom
  PowerCenterFunction
  PowerCenterFunction and
  PowerAreaTransitionFunction
  PowerAreaTransitionFunction in a large number of waveguide functions, offering a high flexibility in terms of defining power calculation trajectories and areas, respectively.
• Add path function
  linsinpath
  linsinpath, which interpolates the lateral x- and y-values between transition points via sine functions, linear functions, or combinations thereof. The optional parameter
  TransitionType
  TransitionType specifies the absolute length of the sinusoidal transition after a transition point and before the next one. A value of
  0
  0 corresponds to a purely linear shift between two transition points and a value of
  Inf
  Inf (or greater than the transition length between two transition points) corresponds to a purely sinusoidal transition, respectively.
• Add path function
  splinepath
  splinepath, which uses the MATLAB^® function
  spline
  spline for interpolating the lateral x- and y-values between transition points via a cubic spline interpolation.
• Add path function
  pchippath
  pchippath, which uses the MATLAB^® function
  pchip
  pchip for interpolating the lateral x- and y-values between transition points via a piecewise cubic Hermite interpolating polynomial (PCHIP).
• Add function
  modeinput
  modeinput. This function generates an input field for a BPM simulation based on the eigenmode number
  ModeNumber
  ModeNumber of the waveguide core specified in
  ModeCore
  ModeCore of waveguide section specified in
  ModeSections
  ModeSections instead of having to use a separate
  modesolver
  modesolver call in conjunction with
  custominput
  custominput. The function
  modeinput
  modeinput uses the cached output from a previous call if the waveguide function and other relevant parameters have not changed. Since only the waveguide from the section specified in
  ModeSections
  ModeSections is relevant for
  modeinput
  modeinput, other sections can be modified and/or additional sections can be added or sections can be removed without having to recalculate the input field.
• Add function
  getcommonvars
  getcommonvars. This new function automatically returns all common variables, which have been defined in a waveguide function up to the point where
  getcommonvars
  getcommonvars is executed. This eliminates the need to manually specify the common variables which should not be cleared in a subsequent execution of
  sectionclear
  sectionclear.
• Add waveguide function
  thinprism
  thinprism. This function emulates an ideal prism of zero thickness that deflects an input beam by a specified angle.
• Add waveguide function
  thinzernike
  thinzernike. This function creates a circular phase screen defined by a Zernike polynomial.
• Add demo
  rgb_beam_combiner
  rgb_beam_combiner, which simulates the beam propagation in an integrated silica RGB beam combiner using the new path function
  linsinpath
  linsinpath for defining the waveguide structure.
• Add demo
  mach_zehnder_interferometer
  mach_zehnder_interferometer, which simulates the beam propagation through a Mach-Zehnder interferometer (MZI) with two input and two output arms.
• Add demo
  rib_splitter
  rib_splitter, which simulates the beam propagation in a polymer rib waveguide splitter using the new path function
  pchippath
  pchippath for defining the waveguide structure.
• Add demo
  freespace_deflection
  freespace_deflection, which simulates the deflection of a Gaussian beam by several ideal prisms using the new waveguide function
  thinprism
  thinprism.
• Add demo
  directional_coupler_performance
  directional_coupler_performance, which performs the same simulation much faster as the original demo
  directional_coupler
  directional_coupler by omitting the index scanner and live monitor functionalities.
• Add possibility to define
  SuperGaussDegree
  SuperGaussDegree in
  gaussinput
  gaussinput for x- and y-direction independently.
• Add parameters
  SlicesXZGraphType
  SlicesXZGraphType and
  SlicesYZGraphType
  SlicesYZGraphType. Similar to the parameter
  SlicesXYGraphType
  SlicesXYGraphType, these two new parameters specify the plot types of x-z and y-z slice plots. These parameters now allow also the generation of 2D or 3D slice plots of the real part, imaginary part, amplitude, or phase of the field distribution, besides the intensity distribution.
• Add parameter
  ModeCore
  ModeCore. This parameter specifies a single core in a multi-core type waveguide function, such as
  multicore
  multicore,
  plc
  plc, or
  rib
  rib, to be used for a mode evaluation. In conjunction with the input function
  modeinput
  modeinput, it can be used to select a specific core as the location of field input for BPM simulations, and thus eliminates the need for defining a separate dummy waveguide section that was hitherto used only for an input field specific mode evaluation.
• Add parameter
  NumericalAperture
  NumericalAperture to
  gaussinput
  gaussinput to take into account the numerical aperture of the optical system generating the Gaussian input beam. When set to
  Inf
  Inf (which corresponds to the default value), also beam waists beyond the classical resolution limit can be generated, e.g., beam widths smaller than the wavelength. Note however that the use of such small beam waists cause the beam to strongly diverge shortly behind the location of the waist.
• Add new materials to material database.

Enhancements:

• Change parameter order in waveguide functions
  multicore
  multicore,
  plc
  plc, and
  rib
  rib to improve consistency throughout all waveguide functions.
• Replace required parameter
  shift
  shift by optional parameter
  Shift
  Shift in
  plc
  plc waveguide function.
• Improve dispersionsolver to work also with complex refractive indices.
• Improve input field functions.
• Improve waveguide functions with respect to 2D calculations.
• Improve memory efficiency in
  modesolver
  modesolver.
• Remove numerical noise in imaginary part of modes.
• Remove restriction of the video export functionality requiring MATLAB version 8.2 (R2013b) or later.
• Use
  IndexRange
  IndexRange also for all monitor and x-y slice plots.
• Add possibility to define
  MonitorGraphType
  MonitorGraphType,
  SlicesXYGraphType
  SlicesXYGraphType,
  SlicesXZGraphType
  SlicesXZGraphType,
  SlicesYZGraphType
  SlicesYZGraphType,
  IndexSlicesXYGraphType
  IndexSlicesXYGraphType, and
  DispersionGraphType
  DispersionGraphType as string.
• Add possibility to set
  SlicesXYGraphType
  SlicesXYGraphType,
  SlicesXZGraphType
  SlicesXZGraphType,
  SlicesYZGraphType
  SlicesYZGraphType in
  bpmplot
  bpmplot independent of previous choices.
• Add possibility to set
  SlicesXYGraphType
  SlicesXYGraphType in
  modeplot
  modeplot independent of previous choices.
• Add possibility to define
  CoreShapeFactor
  CoreShapeFactor,
  Shift
  Shift, and
  ShiftEnd
  ShiftEnd as cell arrays in
  rib
  rib.
• Add possibility to change the faceted shading line width via optional parameter
  LineWidth
  LineWidth.
• Add general tips how to reduce the overall computation time of BeamLab simulations to documentation.
• Add subdirectories to demos directory.
• Improve titles and axis labels.
• Improve warning and error messages.
• Improve demo scripts.
• Improve documentation.

Bug fixes:

• Fix bug with respect to semi-vectorial calculations using y-polarization.
• Fix units of field and intensity distributions for 2D calculations.
• Fix bug in
  plc
  plc when using materials from the material database.
• Fix bug in
  rib
  rib waveguide function with respect to 2D calculations.
• Fix bug in stacked slices plots when plotting the field’s phase.
• Various minor bug fixes.
